Orbital welding equipment

Main Features of the Power Sources

• Welding current 4-600A.
• Axis of the welding heads: Rotation speed, Current, Gas flow, Filler wire speed, Oscillation and Arc voltage control
• Remote control
• Memory stick slot, USB or PC connection
• Printer or PC connection for parameter store
• Liquid cooling

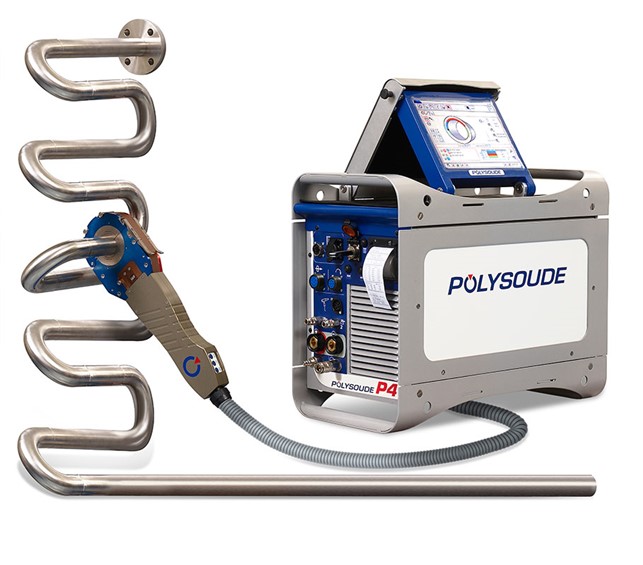

Polysoude power sources for orbital welding

Welding Heads for Orbital Welding

Polsoude orbital welding heads are designed for orbital welding of tubes or other round objects, which can be TIG welded. Available are closed chamber, open chamber or tube-to-tubesheet welding heads. Additionally are available Polycar carriages.

Main Features of Closed Chamber Welding Heads 

• Tube sizes 1,6 – 170 mm
• Wall thickness < 3 mm
• Filler material not possible
• Closed chamber reduce oxidaton of the weld seam
• Buttons for start/stop of welding process (depengin of the model)

Polysoude closed chamber welding heads

Main Features of the Open Chamber Welding Heads

• Tube sizes 8 – 275 mm
• Integrated or external wire feeder unit (optional)
• Oscillation and arc voltage control of the torch (optional)

Main Features of Polycar Carriage

• Tube sizes > 32 mm
• Each tube size require own carriage rail
• Wall thickness < 250 mm
• Welding torch can be normal TIG or narrow gap TIG
• Integrated wire feeder unit
• Oscillation and arc voltage control of the torch

Polysoude open chamber welding heads and Polycar carriages

Main Features of Tube-to-Tubesheet Welding Head

• Tube internal diameter > 8 mm
• Tube external diameter < 75 mm
• Integrated wire feeder unit (optional)
• Torch arc voltage control
• All tubsheet constructions can be welded

Polysoudetube-to-tubesheet welding heads
